GD Series Motor Core High Speed Press

  • Product Description

    This series is the prime choice for automatic high-speed precision stamping for self-reveting iron core of new energy vehicle motor, compressor motor, high-efficiency industrial motor, etc. The soft contact during forming extensively reduces vibration, noise and heat, as well as extending die lifetime. The design of low energy consumption can effectively save more than 30% of energy.



    Product Features/Advantage

    1.Fast and sufficient lifting of slide, convenient for Die Testing and Maintenance.

    2.Top-oil cylinder structure achieving hydraulic overload protection and Sticking Release

    3.Square slide, bearing based stroking mechanism allowing lower comprehensive clearance and energy

    4.Reduction of passive inertia also reduced unloaded energy consumption down by 30%

    5.Low inertia allowing faster braking and low speed mold adjustment

    Application :

    Automatic high-speed precision stamping for self-reveting iron core of new energy vehicle motor, compressor motor, high-efficiency industrial motor, etc.



    PRODUCT SPECIFICATION:





    Specification Unit GD63A GD125A GD200LA GD200W GD300LA GD300W GD400-280
    Force structure 　

    Square slider bearing

    Double points

    Square slider bearing

    Double points

    Square slider bearing

    Dual drive dual point

    Square slider bearing

    Single drive dual point

    Square slider bearing

    Dual drive dual point

    Square slider bearing

    Single drive dual point

    Crank shaft

    Double drive three points

    Crank shaft

    Double drive four points
    Capacity kN 630 1250 2000 2000 3000 2000 4000 6300
    Force points    2 2 2 2 2 2 3 4
    Rated tonnage point mm 3 3 3 1.6 3 1.6 1.6 1.6
    Slide stroke mm 30 30 30 30 30 30 40 40
    Pressing times SPM 150-400 150-400 160-350 160-350 160-350 160-350 100-250 80-200
    Die Height mm 320-380 350-410 380-480 380-480 420-520 420-520 450-550 450-550
    Minimum die height when lifting capacity mm 80 100 150 150 150 150 150 150
    Slide size（LR×FB） mm 950X530 1260X600 1750X760 1900X760 2000X800 2200X800 2800X1000 3100X1300
    Bolster area(L.R. x F.B.) mm 950X595 1300X650 1750X1000 1900×1000 2000×1000 2200×1000 2800×1200 3100×1300
    The base of blanking holes area(L.R. x F.B.) kW 700×180 1000×250 1450×260 1600×300 1700×410 1900×400 2400×510 2700×580
    The main motor power kW 11 15 2×15 2×15 2×15 2×15 2×30 2×37
    The total power kW 16 22 37 40 37 55 75 90
    Positive opening width mm 750 1200 1750 1750 2020 1750 2900 3200
    Accuracy（JIS B6402)   GB/JIS Class1   GB/JIS Class1   GB/JIS Class1   GB/JIS Class1   GB/JIS Class1   GB/JIS Class1   GB/JIS Class1   GB/JIS Class1





  • Where can you ship this equipment to globally?

    Anywhere you desire. We have customers based in many nations in every continents, to name a few: Canada, the USA, Mexico, Brazil, France, Germany, Poland, Russia, Egypt, Algeria, Saudi Arabia, India, Thailand, Korea.



    How can I get after service from China during and after Covid?

    We have worldwide after service teams based in Europe, Middle East, North America, and South Asia that is able to support our global customers. We also host a multi-lingual speaking team that can provide remote technical support and service from China. When traveling limitation is limited, our technicians can fly to you if necessary.



    What is the general leadtime?

    In-stock machines takes around 10 days to deliver. Standard configuration machines take around 45 to 90 days to deliver. The lead time depends on the size, complexity and destination standards.



    What is the standard of your machine?

    JDM provides CE standard products with CE marks. If required, we can make UL standard products as well.



    How do I know you make good quality machines?

    We have dedicated engineering team, quality team, precise machine tools and ISO9000 Quality system in the company. We provide WEBEX online inspection and onsite checking for customer to inspect the manufacturing.



    What payment and delivery terms do you accept?

    JDM accepts L/C, T/T, Western Union and Cash Payment. We accept EXW, FOB, CIF and other shipping terms.

ꄴPrevious： MC1 SINGLE-POINT PRECISION PRESS
ꄲNext： KSC Series Double Crank Precision Press machine

Related Products:

SKC2 Series Open Type Double Point Servo Press
This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, mechanical arm or added with transfer system.You can choose a model suitable for your product from a variety of slider process curves, and there is a multi-function servo control.
¥ 0.00
SMC2 Series Direct Servo Press
Product Description
This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, added with transfer system.You can choose a model suitable for your product from a variety of slider process curves, and there is a multi-function son servo control.multi-functi
¥ 0.00
SMC1 Series Direct Servo Press
Product Description
This is generally applicable for blanking, punching, bending and forming process on small single work of thin steel plate and progressive die parts, which can connect with single press, progressive die, added with transfer system.You can choose a model suitable for your product from a variety of slider process curves, and there is a multi-function servo control.
¥ 0.00
SC2L series closed double-point multi-link press
Product Description
SC2L adopts adopts double-toggle structure,suitable for thick plate precision cold forming, suitable for continuous die, progressive die automatic stamping.Prolong die life and reduce die maintenance.And the most important compared with ordinary double crank press, the production efficiency can be improved by 30-50% with the same die and forming speed.
¥ 0.00

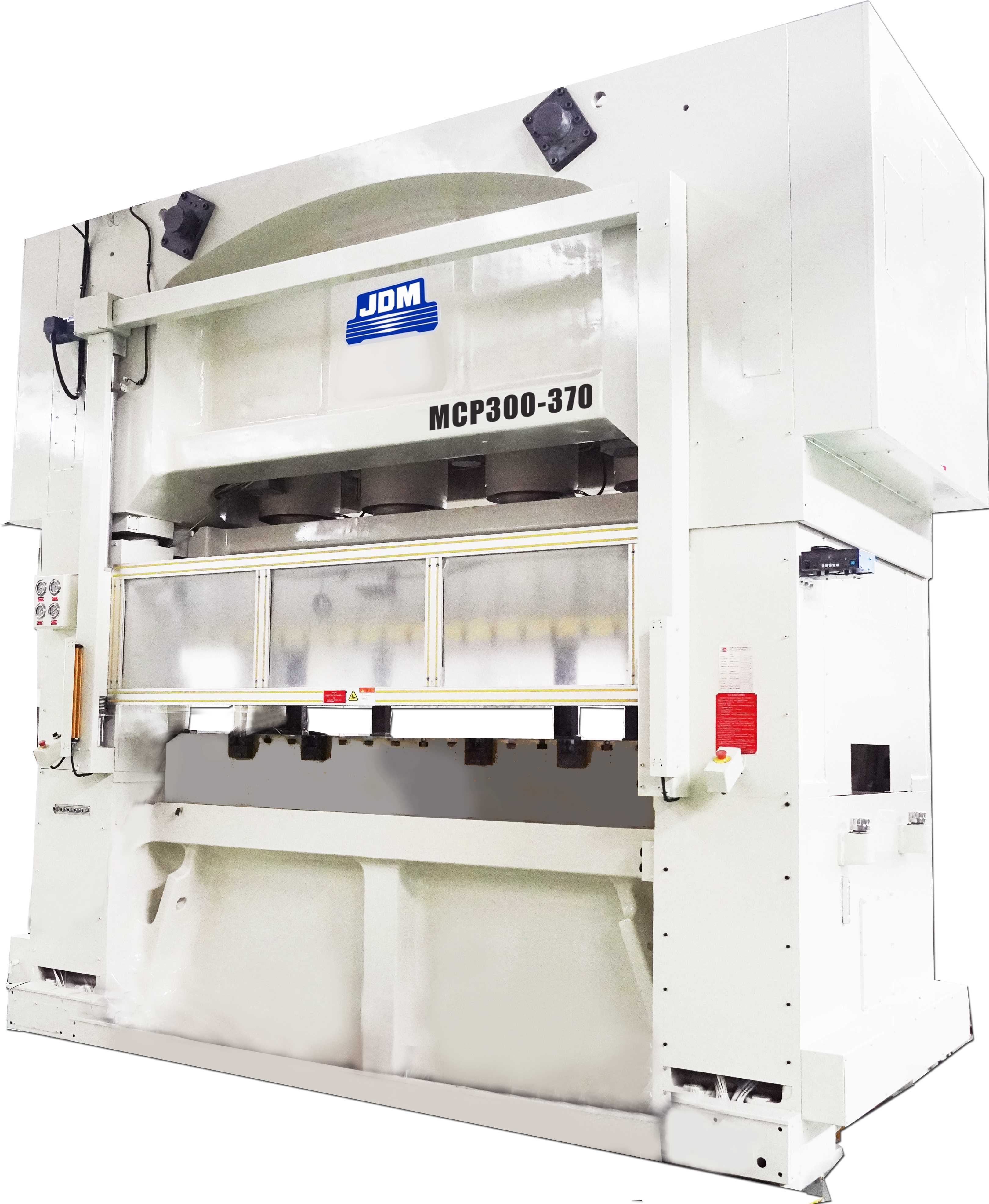

MCP Series Wide mesa ultraprecision High-speed Press
