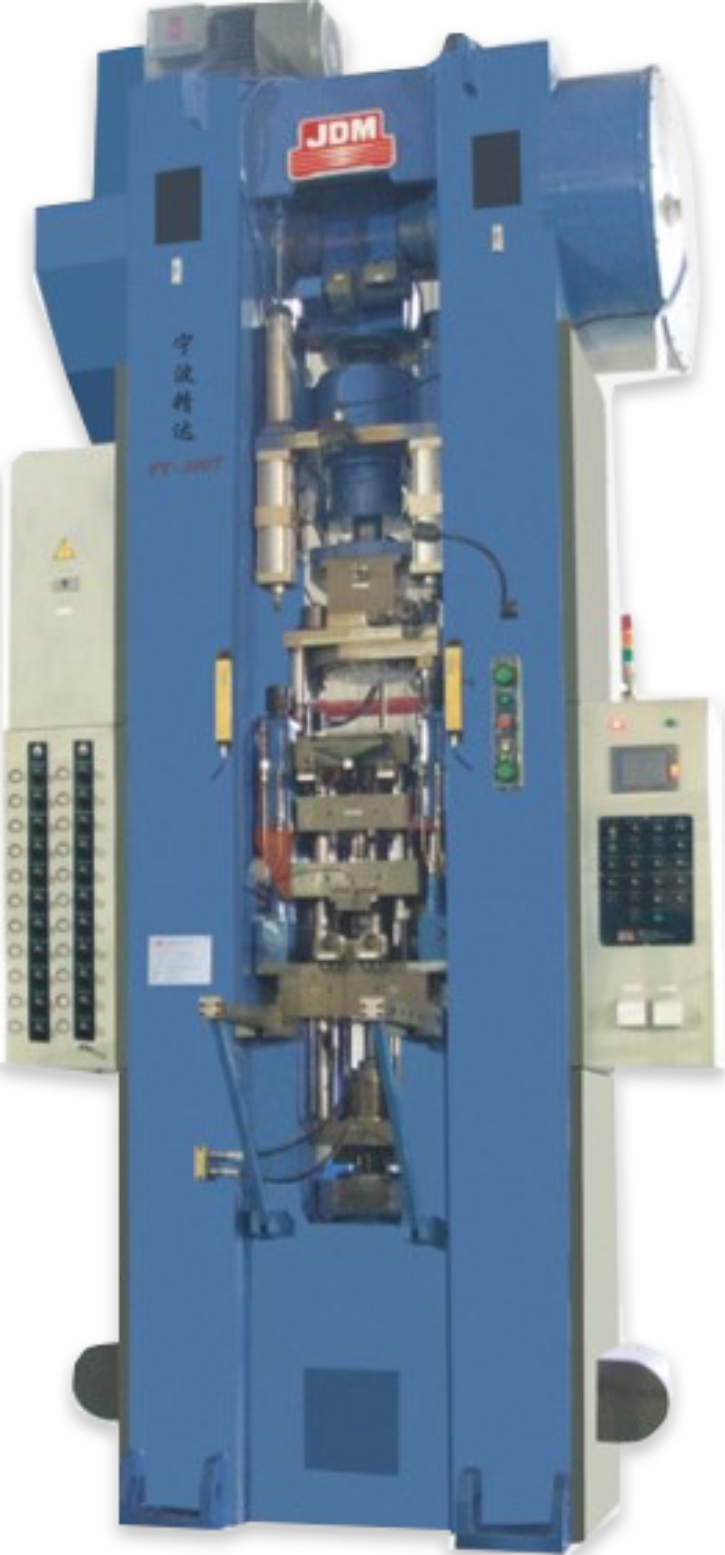

MCP Series Wide mesa ultraprecision High-speed Press

  • Product Description

    MCP adopts a 4 columned structure with oil cylinder on top, which can ensure precision during high-speed and stable operation. It is suitable for high-precision high-speed stamping production of 0.2-0.35mm highly-stiff material, micron-level die clearance at wide table surface, such as continuous die of self-riveting iron core.. Stand-alone, online or complete line production with conveyor equipment.



    Product Features/Advantage

    4 columned structure with oil cylinder on top

    Double-drive technology

    Multi-contact slide

    Highly rigid frame forged with pre-stress

    Multiple aging treatment

    Low inertia clutch brake

    Highly rigid frame forged with pre-stress

    Isothermal lubrication cooling system

    Straight column + octagonal high-precision guide

    High speed

    Lightweight, fully dynamic balance design

    Stable operation under 300-400SPM load

    High rigidity

    highly-rigid-forged frame, stiffness is 1 / 15000-1 / 20000

    The turbulence of the multi-contact slide is 1/2 of that of double-contact design

    High precision

    Static precision: 1/2 of allowance of JIS Ultra Level

    Lower dead point dynamic accuracy: GB/T 29548 ultraprecision level



    Complete specification

    Covering 200-500 tons application, a variety of Bolster table, to meet the thinner, preciser, faster stamping requirements of high-efficiency-motor material.

    Specification Unit MCP200-175 MCP220-200 MCP300-230 MCP300-270 MCP300-330 MCP300-370 MCP400-280 MCP400-330 MCP400-370 MCP500-330 MCP500-370
    Tonnage capacity Kn 2000 2200 3000 3000 3000 3000 4000 4000 4000 5000 5000
    Force points  　 2 3 3 3 4 4 4 4 4 4 4
     Tonnage rated point mm 3 3 3 3 3 3 3 3 3 3 3
    Slide stroke mm 30 30 30 30 30 30 30 30 30 30 30
    Stroke per minute spm 150～500 150～450 120～420 120～400 100～350 100～300 100～300 100～300 100～300 80～280 80～280
    Die height mm 370～430 420～480 420～520 420～520 520～620 520～620 520～620 520～620 520～620 550～650 550～650
    Minimum die height when lifting capacity mm 150 150 150 150 150 150 150 150 150 150 150
    Slide area mm 1750×700 2000×700 2300×800 2700×800 3300×900 3700×1000 2800×1000 3300×1000 3700×1000 3300×1200 3700×1200
    Bolster area mm 1750×950 2000×950 2300×1000 2700×1000 3300×1000 3700×1200 2800×1200 3300×1200 3700×1200 3300×1300 3700×1200
    Thickness of  working table mm 200 200 210 250 250 250 280 280 280 300 300
    Base of blanking holes area mm 1500×310 1800×310 2000×410 2400×400 3000×500 3200×500 2500×510 3000×500 3200×500 2800×580 3200×580
    Main motor power kW 2×15 2×15 2×22 2×22 2×22 2×22 2×30 2×30 2×30 2×37 2×37
    Total power kW 37 37 51 51 51 51 70 70 70 90 90
    Positive opening width mm 1800 2050 2350 2750 3350 3750 2850 3350 3750 3350 3350
    Accuracy（JIS B6402) 　 Special Special Special Special Special Special Special Special Special Special Special
