Horizontal Expander

  • Short Description:

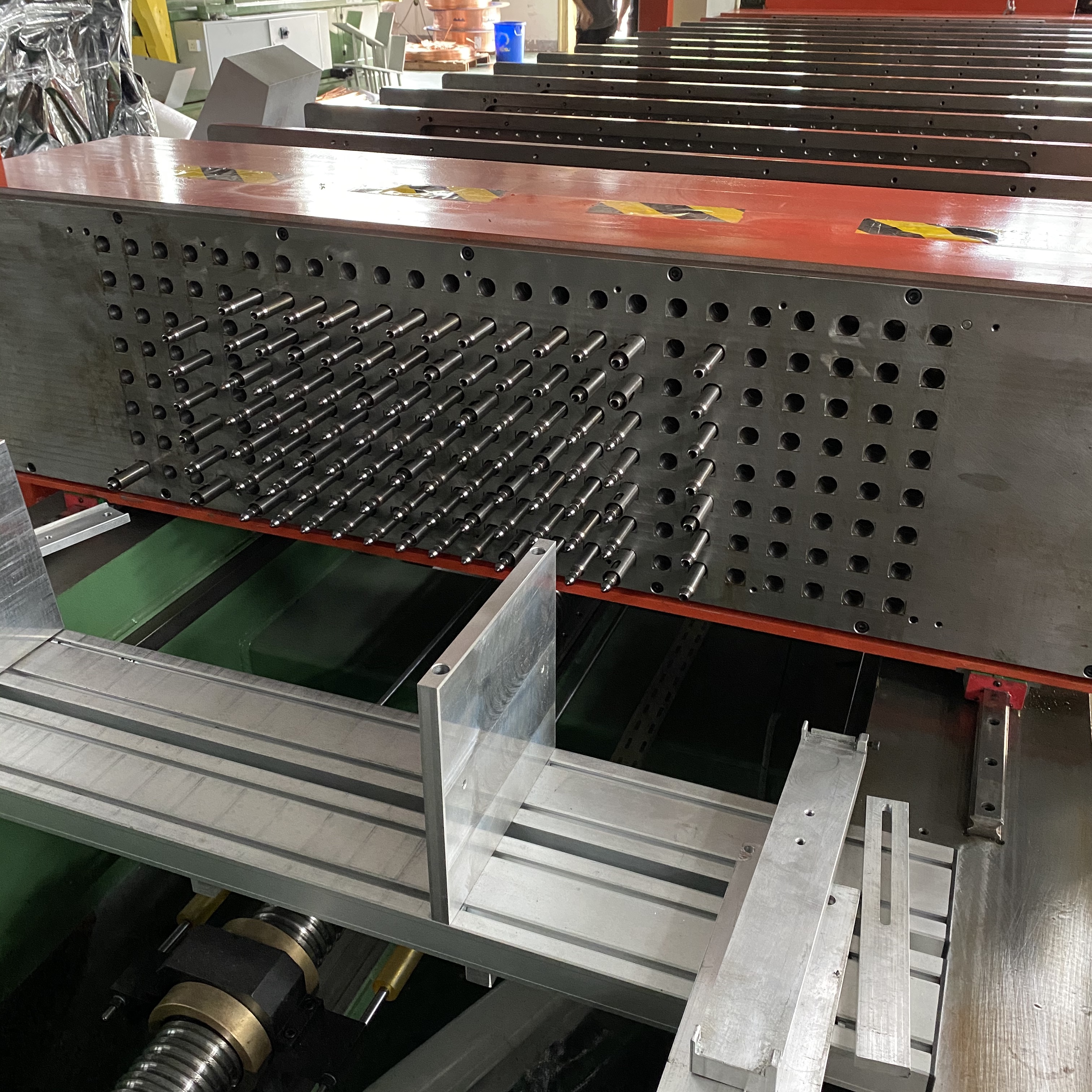

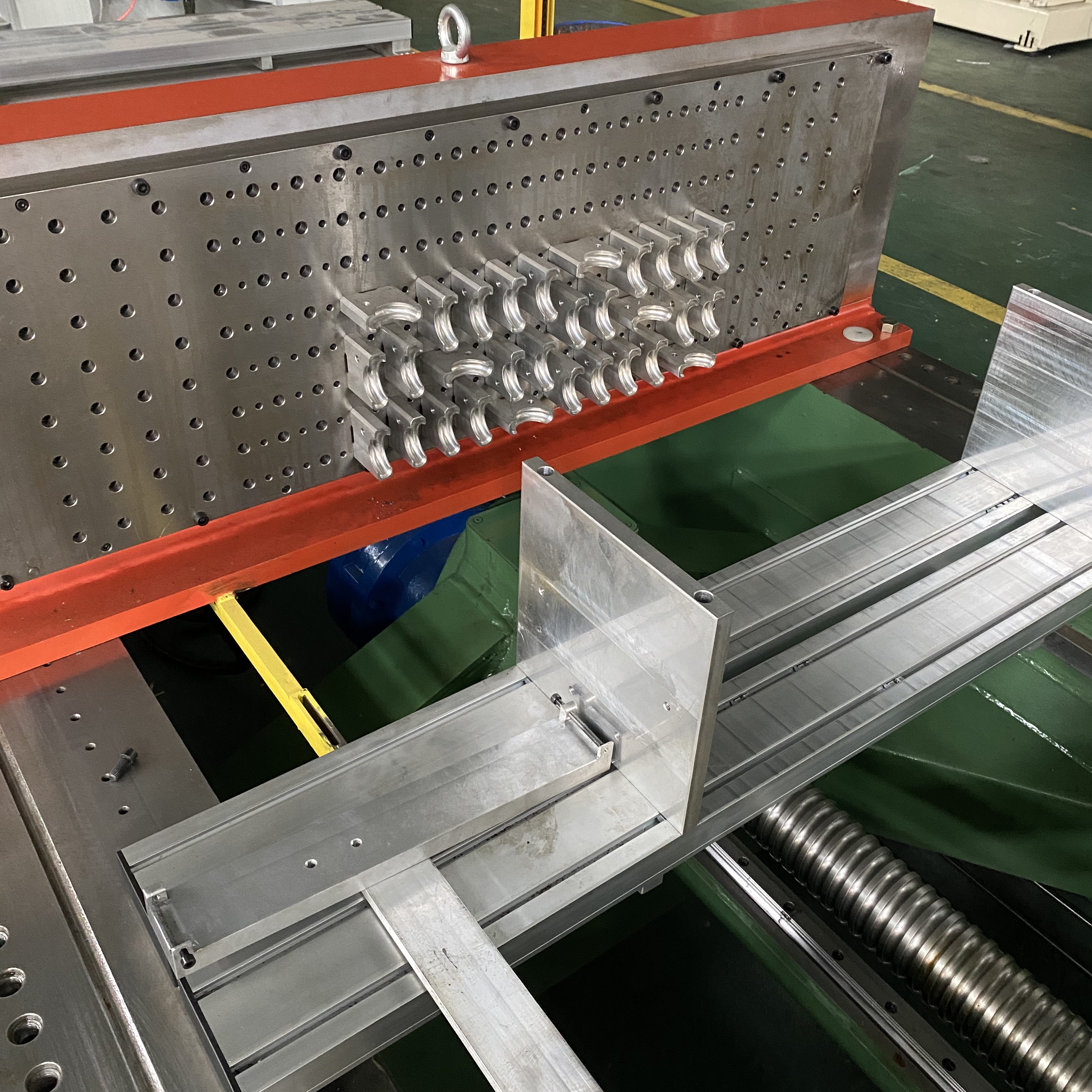

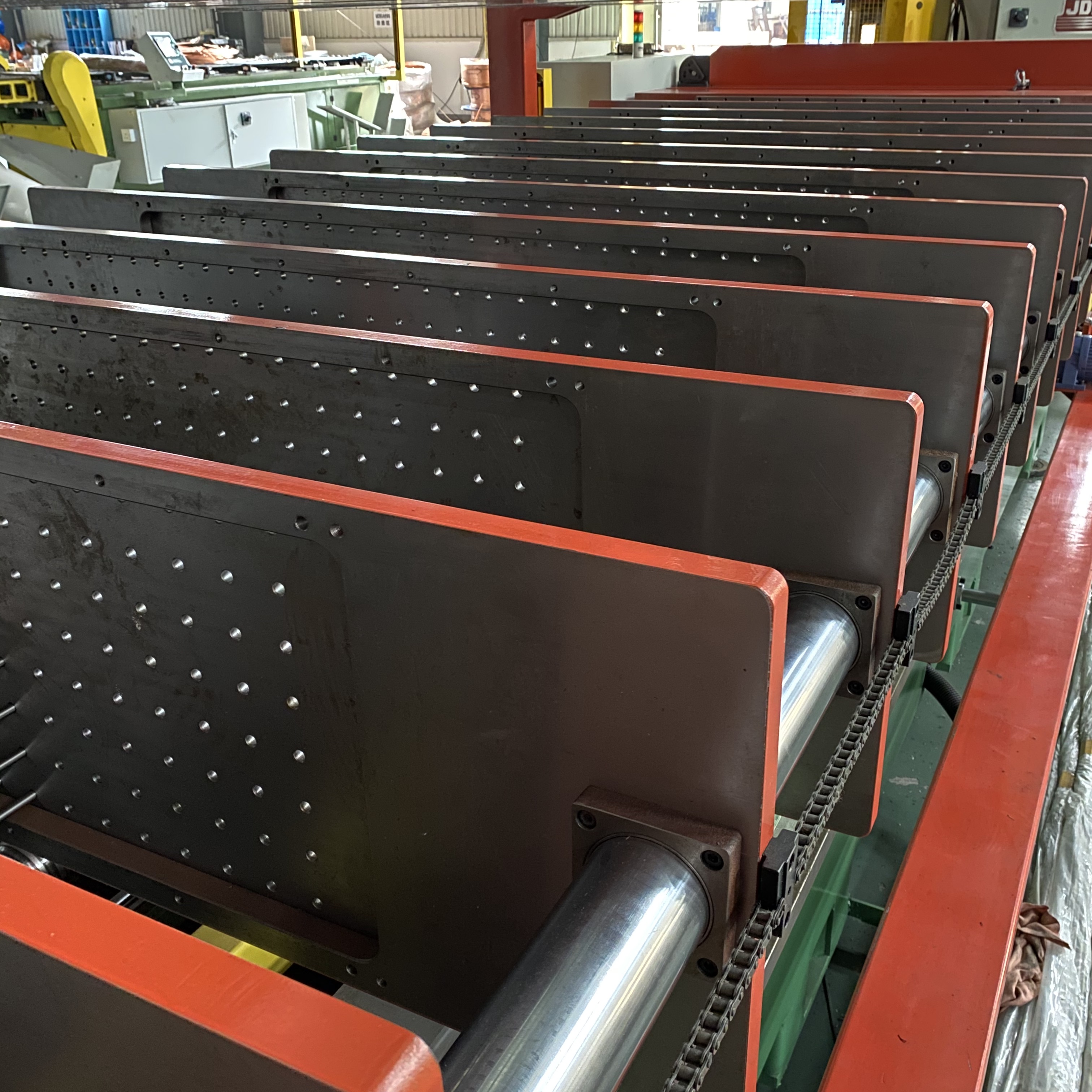

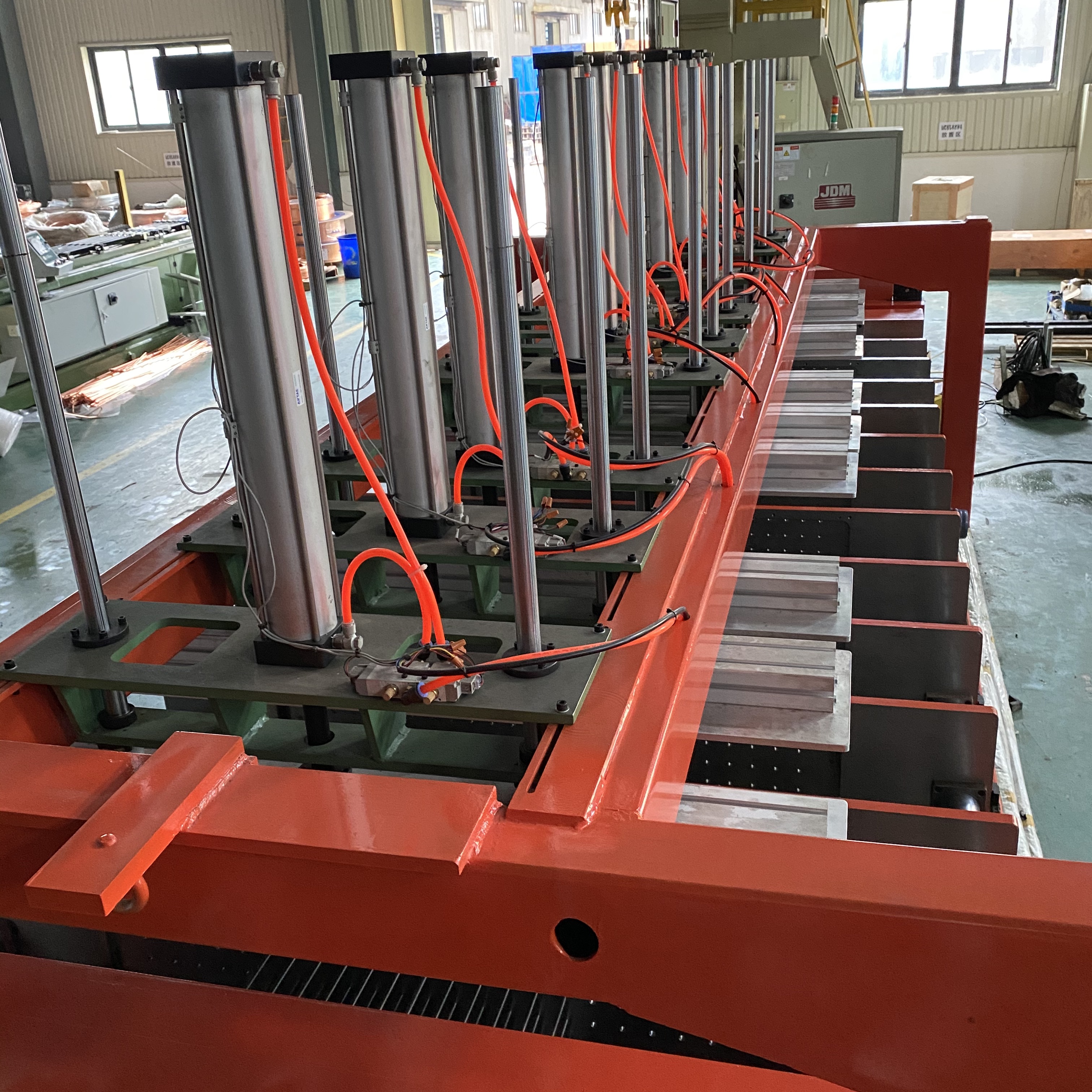

    The JDM horizontal expander machine is dedicated to expand heat exchanger coils reliably with little damage, especially for long size coil with maximum length up to 6 meters. The optional automated production line enables the procedure of coil feeding, expanding, flaring and ejecting complete in a short cycle time. The high precision ensures that tubes are expanded uniformly and fins remain undamaged.



    Key Features:

    1.Economically competitive

    2.High accuracy and reliability

    3.Process capability of long workpiece up to 6m

    4.Customized options available

    PRODUCT SPECIFICATION:

    Coil  Parameter Value
    Specification Tubing diameter Φ5-Φ12.7 mm
    Tubing material Copper, Aluminum, Alloy
    Coil length 500-6000mm
    Coil width 1524 mm
    Machine  Model 2500 3500 4000 5000 6000
    Specification Tube Expansion  Forward: max 4
    speed (m/min) Backward: max 5
    Total power 14kW
    Air supply 0.5-0.7MPa
    Power supply 380V/50Hz
    Weight 9-20ton



    Optional Configuration

    1.Coil feed system: Conveyor feeding/Worktable feeding

    2.Coil eject system: Pneumatic drive/Servomotor drive

    3.Auto-rod option

    4.Micro-shrink option

    5.Automated production line option: Transfer platform, Tube insertion worktable, Automatic palletizer

  • Where can you ship this equipment to globally?

    Anywhere you desire. We have customers based in many nations in every continents, to name a few: Canada, the USA, Mexico, Brazil, France, Germany, Poland, Russia, Egypt, Algeria, Saudi Arabia, India, Thailand, Korea.



    How can I get after service from China during and after Covid?

    We have worldwide after service teams based in Europe, Middle East, North America, and South Asia that is able to support our global customers. We also host a multi-lingual speaking team that can provide remote technical support and service from China. When traveling limitation is limited, our technicians can fly to you if necessary.



    What is the general leadtime?

    In-stock machines takes around 10 days to deliver. Standard configuration machines take around 45 to 90 days to deliver. The lead time depends on the size, complexity and destination standards.



    What is the standard of your machine?

    JDM provides CE standard products with CE marks. If required, we can make UL standard products as well.



    How do I know you make good quality machines?

    We have dedicated engineering team, quality team, precise machine tools and ISO9000 Quality system in the company. We provide WEBEX online inspection and onsite checking for customer to inspect the manufacturing.



    What payment and delivery terms do you accept?

    JDM accepts L/C, T/T, Western Union and Cash Payment. We accept EXW, FOB, CIF and other shipping terms.
