Return Bend Washing Machine

  • Short Description:

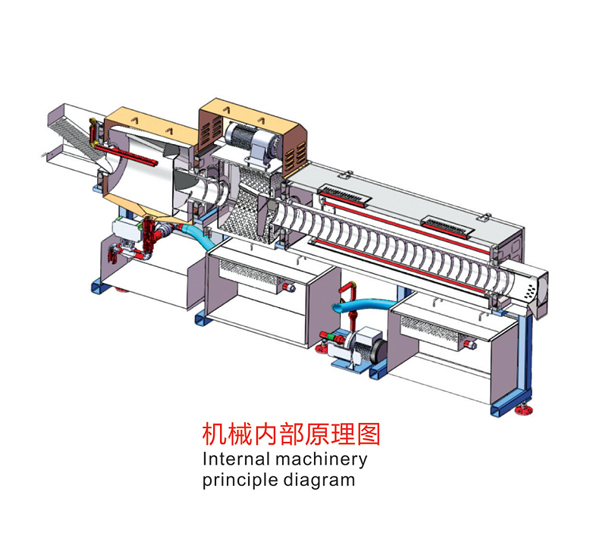

    Return Bend Washing machine is used to de-bur and clean massive elbows produced from previous process. This machine operates in automatic mode and can mass wash return bend efficiently. The process goes as following: Feed-deburr and clean-rinse-dry-discharge.





    PRODUCT SPECIFICATION:

    Parameter Value
    Material processable Copper, Aluminum
    Tube diameter Φ5mm-Φ9.52mm
    production efficiency 3000 pcs / hour
    Pressure range 0.30.5Mpa
    Hydraulic pressure 0.20.4Mpa
    Water consumption 3.0-5.0M3/h
    Power supply 3ph. 380V 50Hz
    Total Power 2.5kW



  • Where can you ship this equipment to globally?

    Anywhere you desire. We have customers based in many nations in every continents, to name a few: Canada, the USA, Mexico, Brazil, France, Germany, Poland, Russia, Egypt, Algeria, Saudi Arabia, India, Thailand, Korea.



    How can I get after service from China during and after Covid?

    We have worldwide after service teams based in Europe, Middle East, North America, and South Asia that is able to support our global customers. We also host a multi-lingual speaking team that can provide remote technical support and service from China. When traveling limitation is limited, our technicians can fly to you if necessary.



    What is the general leadtime?

    In-stock machines takes around 10 days to deliver. Standard configuration machines take around 45 to 90 days to deliver. The lead time depends on the size, complexity and destination standards.



    What is the standard of your machine?

    JDM provides CE standard products with CE marks. If required, we can make UL standard products as well.



    How do I know you make good quality machines?

    We have dedicated engineering team, quality team, precise machine tools and ISO9000 Quality system in the company. We provide WEBEX online inspection and onsite checking for customer to inspect the manufacturing.



    What payment and delivery terms do you accept?

    JDM accepts L/C, T/T, Western Union and Cash Payment. We accept EXW, FOB, CIF and other shipping terms.
