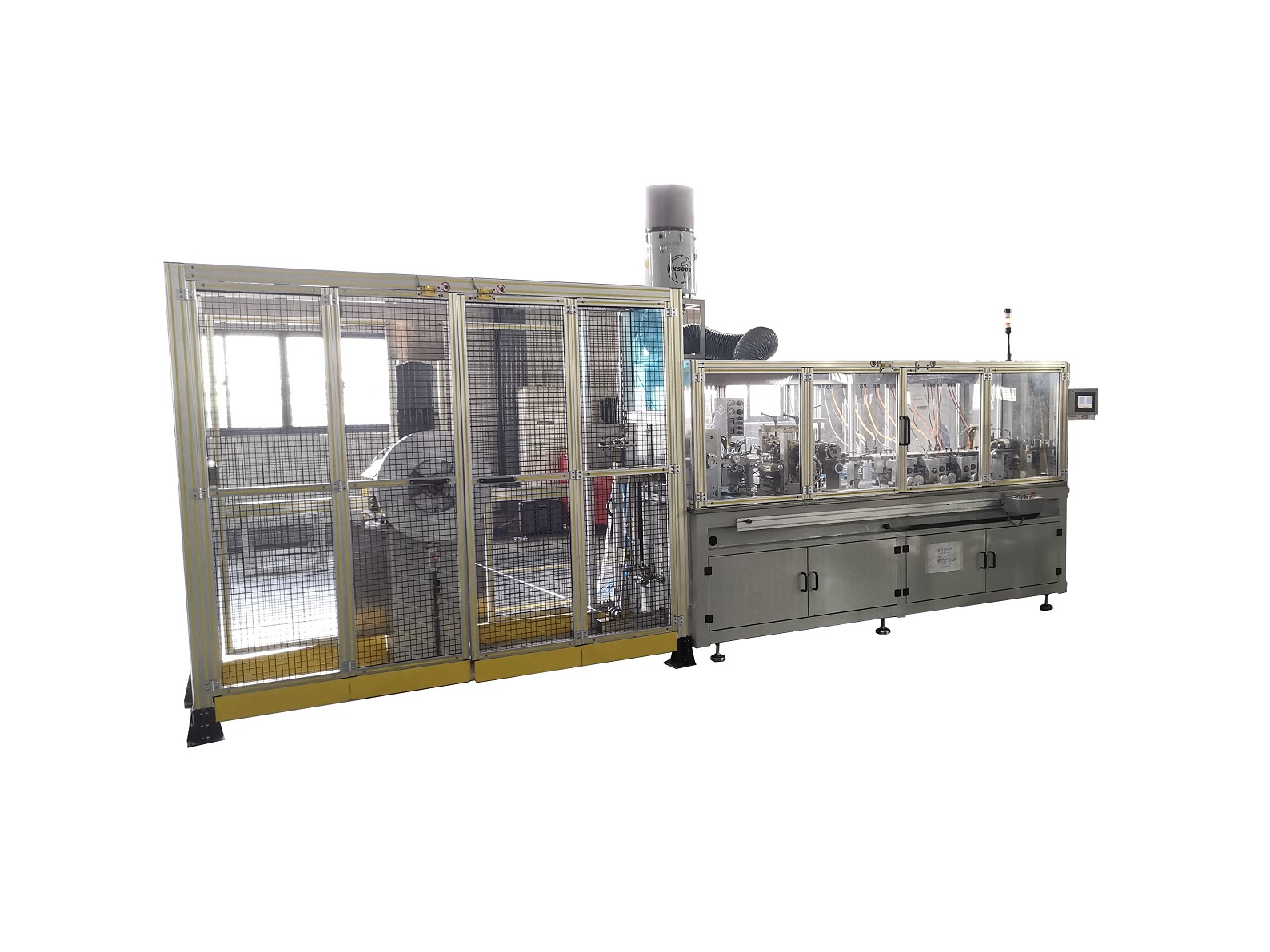

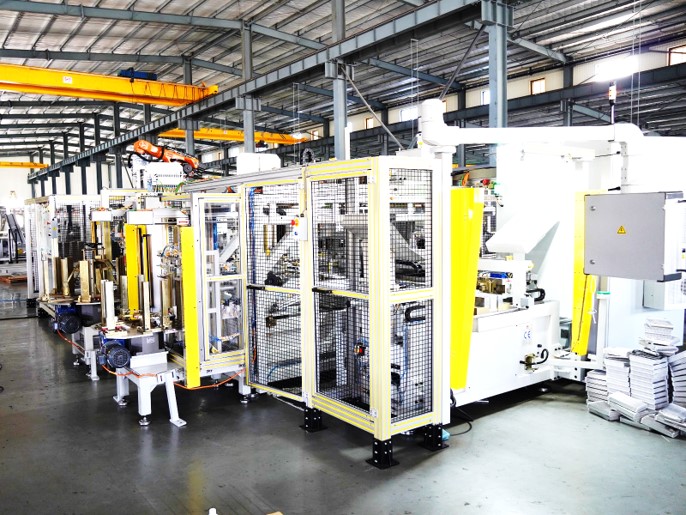

Fully Automatic Core Builder
-
Product description:
JDM Core builders assembles heat exchanger core of radiators, condensers, evaporators, CAC unit, or oil coolers. This machine is widely used in automotive and HVAC industry for aluminum or stainless-steel heat exchangers. JDM supplies manual, semi-automatic, and automatic models of core builders for different customers.
Key Features/Advantage:
1.Highly customizable – Understanding the discrepancy between different auto manufacturers, JDM applies superior technology but adapts different method in designing core builders to meet customer requirement
2.Automation – Specialized automation mechanism and general robot hands are integrated in the core builders to achieve high level of automation in every step of the process.
3.Reliable and stable – Innovative fusion of smaller parts reduces loosening and vibration, creating better and longer operation.
Specification:
Parameter Value Min Core Size 110mmX110mmX12mm Max Core Size 1200mmX1200mmX50mm Vertical tube Rows Max 3 vertical rows of tubes Production Rate Max 1 core/25 second Die Change time 35 minutes Optional Configuration:
1.Tube picking and loading from container
2.Chain transmitted tube loading
3.Double tube stacker loading
4.Tube orientation correction system
5.tube defect detection system
6.Expandable work table
7.pneumatic or laser product marking
8.Single-sided main bar installation
-
