Integrated Fin Core Line

  • Product description:

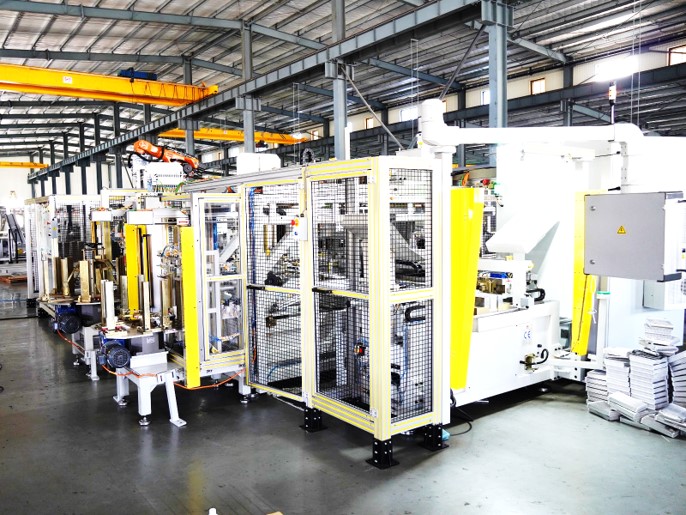

    JDM Integrated Fin Core Line combines the fin mill with core builder for higher efficiency and better space saving. The production line can produce heat exchanger core of radiators, condensers, evaporators, CAC unit, or oil coolers. This machine is widely used in automotive and HVAC industry for aluminum or stainless-steel heat exchangers.

    Key Features/Advantage:

    1.Flexible arrangement – The production line can be place in Z shape, L shape or U shape based on customer workshop layout.

    2.Highly customizable – Understanding the discrepancy between different auto manufacturers, JDM applies superior technology but adapts different method in designing core builders to meet customer requirement

    3.User friendly – The program of the production line is integrated, fin mill and core builder are controlled on the same touch screen HMI

    4.Reliable and stable – Innovative fusion of smaller parts reduces loosening and vibration, creating better and longer operation.


    Parameter Value
    Min Core Size 110mmX110mmX12mm
    Max Core Size 1200mmX1200mmX50mm
    Vertical tube Rows Max 3 vertical rows of tubes
    Production Rate Max 1 core/25 second
    Die Change time 35 minutes


    Optional Configuration:

    1.Tube picking and loading from container

    2.Chain transmitted tube loading

    3.Double tube stacker loading

    4.Tube orientation correction system defect detection system

    6.Expandable work table

    7.pneumatic or laser product marking

    8.Single-sided main bar installation
