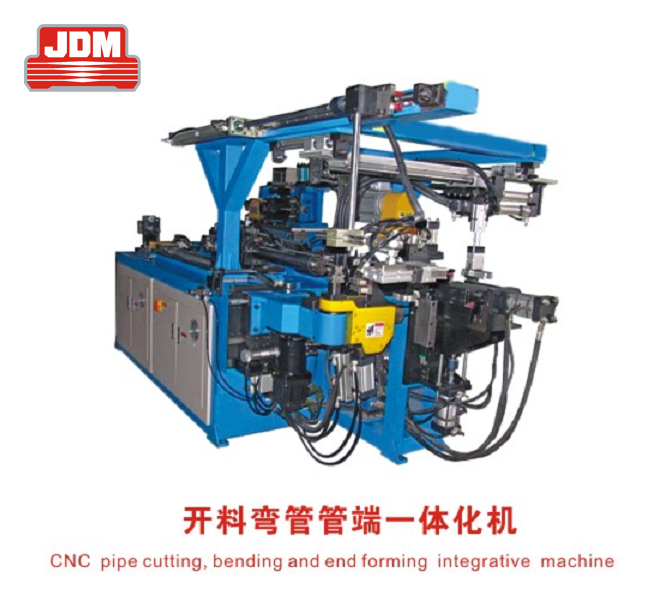

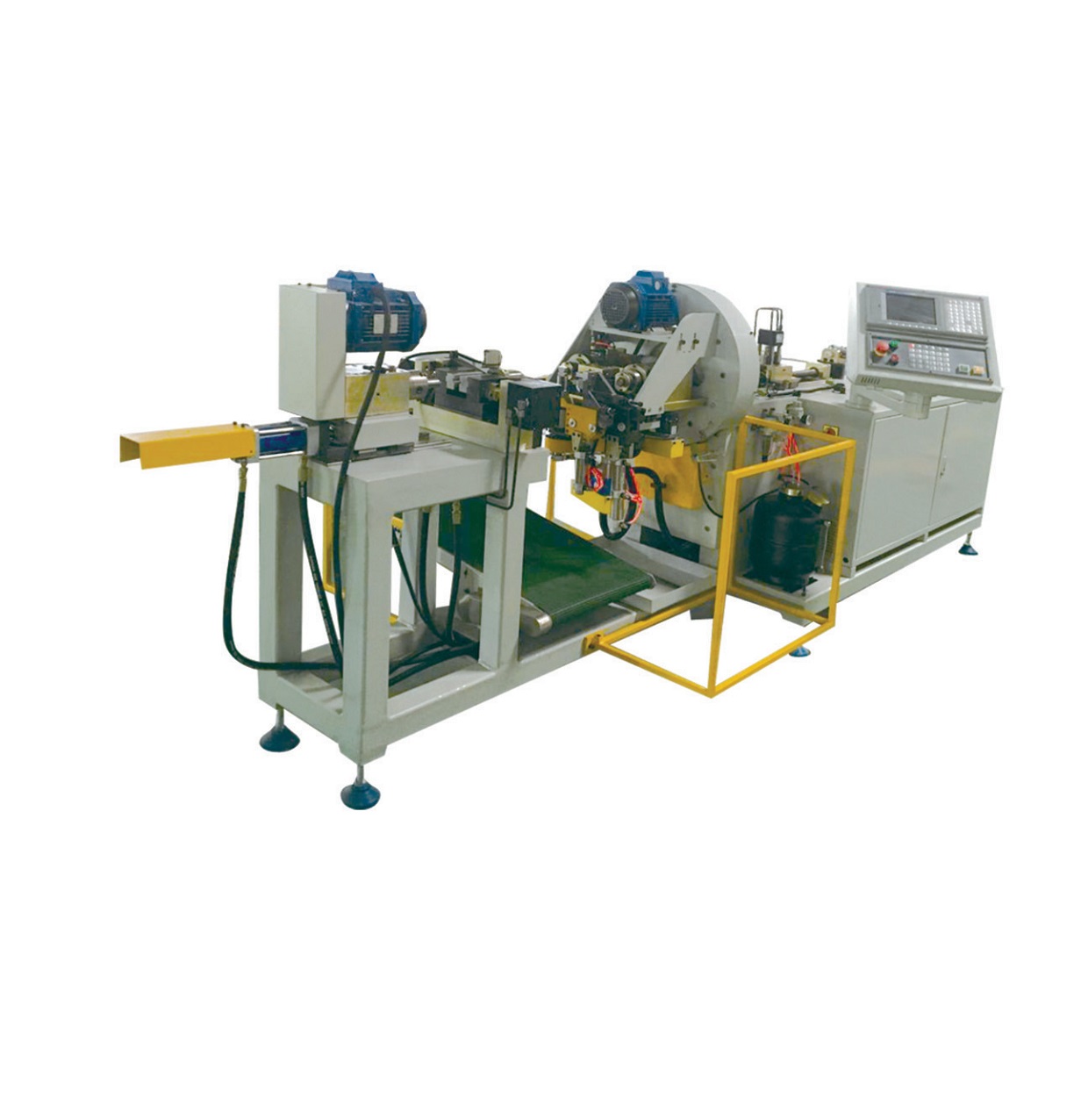

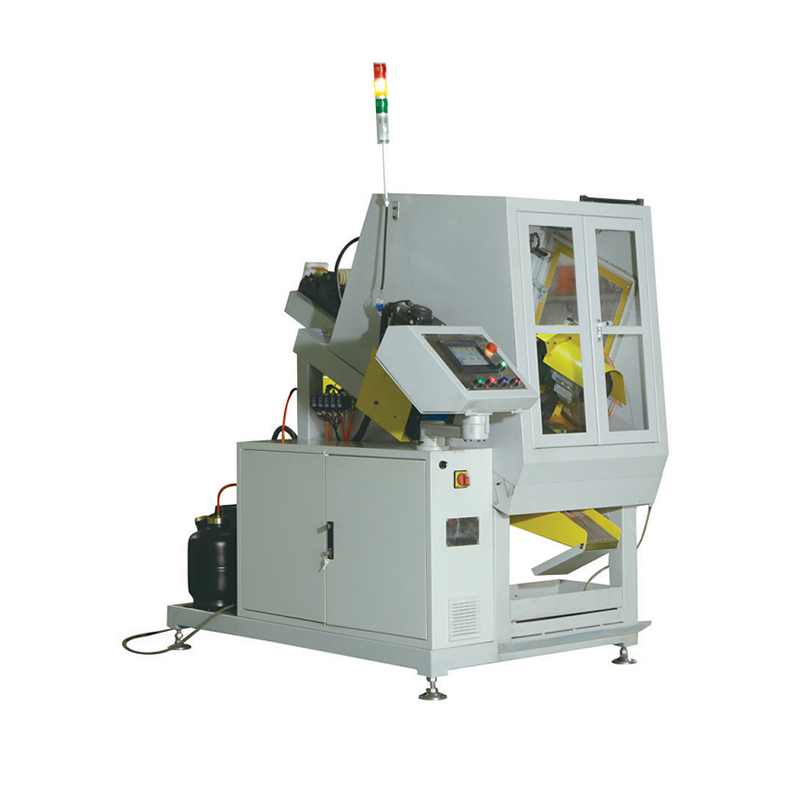

Integrated tube cutting bending end forming machine

  • Short Description:

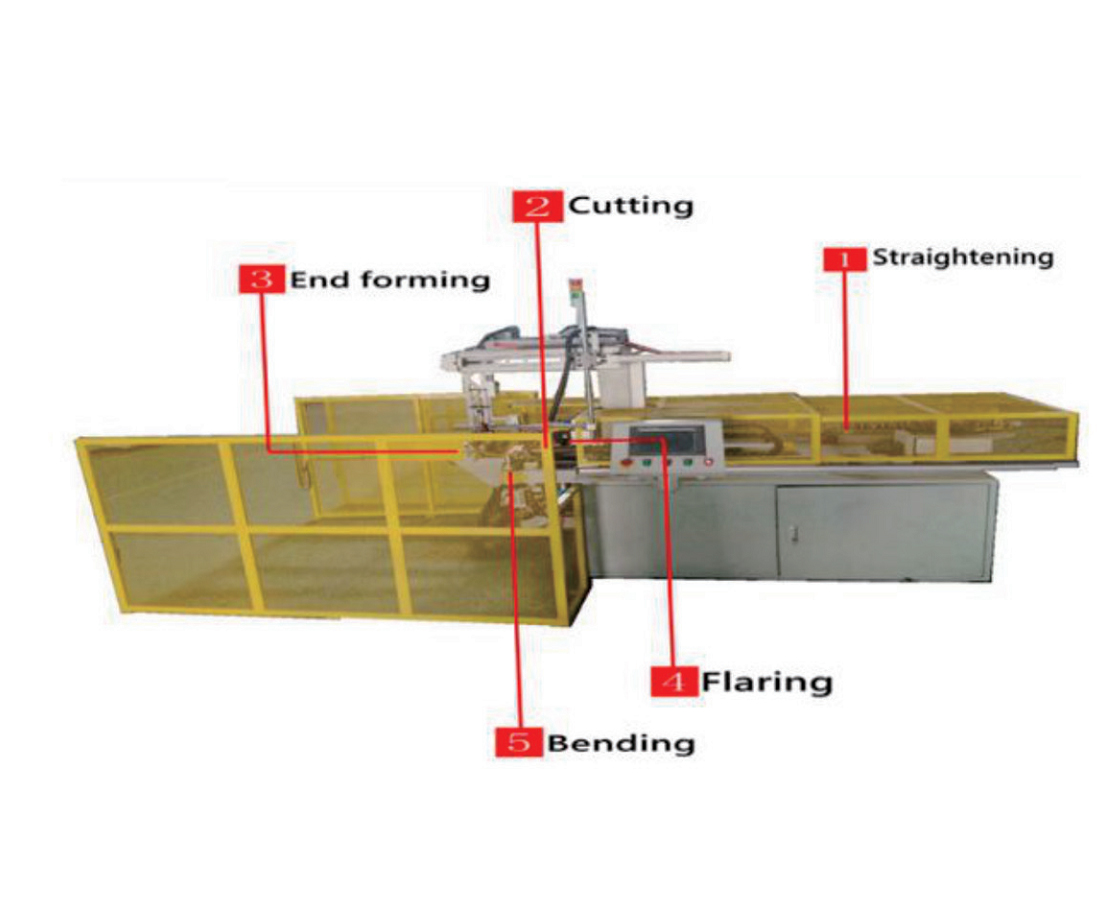

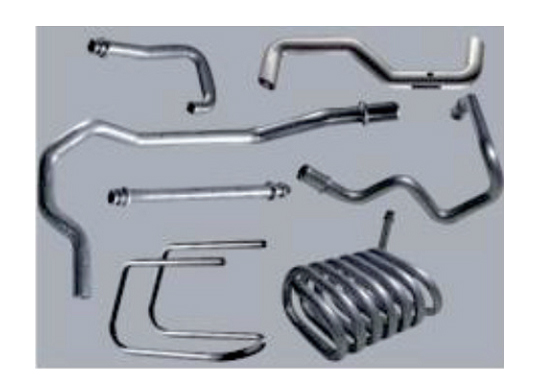

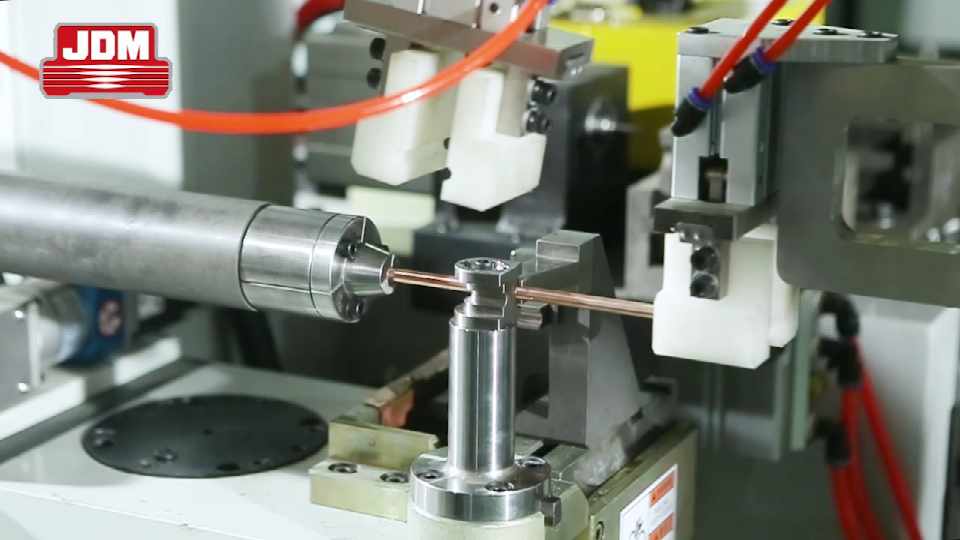

    The equipment integrates cutting, bending and pipe end forming processing. It adapts automatic feeding and discharging, so as to improve production efficiency. The integration of multiple functions increased the production rate and quality, at the same time reduced labor cost. The machine adapts an innovative vertical discharging robot hand, which does not interfere the processing of the bending during discharging.



    Feature:

    High degree of automation

    Convenient operation, exquisite appearance

    Scale board on servo motor, accurate positioning

    PLC & touch screen integrated control



    PRODUCT SPECIFICATION:

    Parameter Value

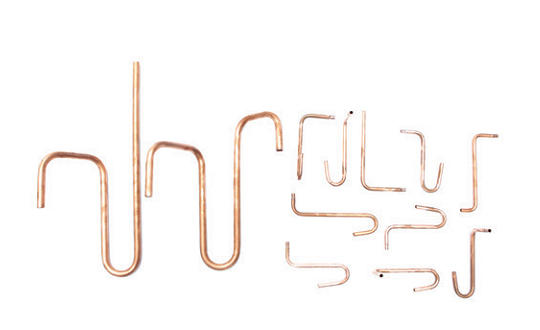

    Machining material Purple copper pipe(roll material)
    Max processing O.D. of copper pipe 15mm
    Max  processing Wall thickness 1.0mm (Copper)
    Bending radius Max60mm/Min 10mm
    Travel of beeline feeding axis 0--1000mm
    Speed of beeline feeding axis 0--1000mm/sec
    Precision of beeline feeding axis ±0.05mm
    Angle of spatial rotation axis  0--±360°
    Speed of spatial rotation axis 0--360°/sec
    Precision of spatial rotation axis ±0.05°
     Angle of bending axis  0--190°
    Speed of bending axis 0--300°/sec
    Precision of bending axis  ±0.05°
    Min cutting length 20mm
    Once feeding travel (cutting) 200 mm∽ 800 mm
    Efficiency(Single cycle ≈loading/cutting  (5 seconds)+end forming (5 seconds)+bending (2 seconds/bend )+ unloading (3-5 seconds)
    Travelling length of end forming 5mm-15mm
    Precision of length ±0.3 mm
    Once cutting flatness ≤0.5mm
    Shrinking rate of pipe end  I.D. ≤20％ wall thickness    ( one side )
    Total power ≤8.5KW
    Pressure of compressed air 0.4-0.6Mpa
    Power supply   Three-phase AC 380 V±10％50H

  • Where can you ship this equipment to globally?

    Anywhere you desire. We have customers based in many nations in every continents, to name a few: Canada, the USA, Mexico, Brazil, France, Germany, Poland, Russia, Egypt, Algeria, Saudi Arabia, India, Thailand, Korea.



    How can I get after service from China during and after Covid?

    We have worldwide after service teams based in Europe, Middle East, North America, and South Asia that is able to support our global customers. We also host a multi-lingual speaking team that can provide remote technical support and service from China. When traveling limitation is limited, our technicians can fly to you if necessary.



    What is the general leadtime?

    In-stock machines takes around 10 days to deliver. Standard configuration machines take around 45 to 90 days to deliver. The lead time depends on the size, complexity and destination standards.



    What is the standard of your machine?

    JDM provides CE standard products with CE marks. If required, we can make UL standard products as well.



    How do I know you make good quality machines?

    We have dedicated engineering team, quality team, precise machine tools and ISO9000 Quality system in the company. We provide WEBEX online inspection and onsite checking for customer to inspect the manufacturing.



    What payment and delivery terms do you accept?

    JDM accepts L/C, T/T, Western Union and Cash Payment. We accept EXW, FOB, CIF and other shipping terms.
