Insulated Tube Lacing Machine

  • Short Description:

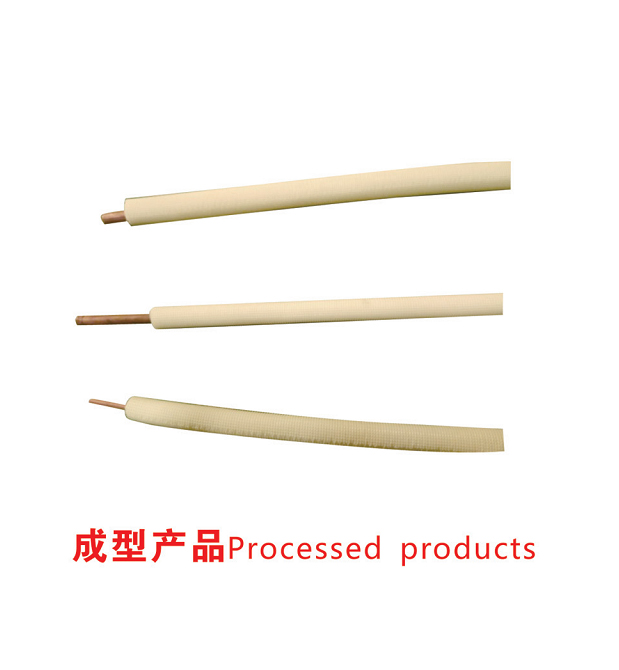

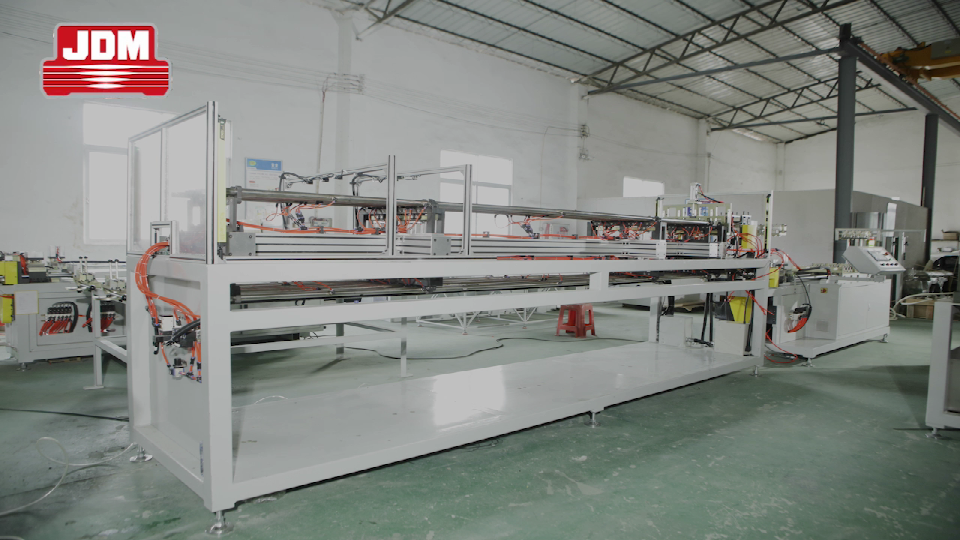

    The equipment is used to uncoil, straighten and cut coil tubes into a fixed-length straight tube and lace the straight tube into the insulation. It is mainly used in HVAC, locomotive, and other industries.



    Features

    High degree of automation

    Simple operation

    Scale board on servo motor, accurate positioning

    PLC & touch screen integrated control



    Product Specification:

    No. Item Content

    1

    Machining material copper ( coil tube)
    2 Min  machining tube OD 6mm
    3 Max machining tube OD &W.T. 20mm *1.2mm
    4 Number of pipe synchronously cutting 2+2
    5 Min cutting length 1000mm
    6 Inserting tube spacing (tooling size) 150mm

    7

    feeding mode

    8

    Feeding speed  750mm/second
    9 Straightness tolerances 2‰4000mm
    10 Repeat length error L≤1000 mm  ±3mm; L≥1000 mm ±3mm
    11 Shrinking rate of pipe–end inner diameter f ≤ 25%
    12



    Pressure of compressed air 0.4-0.6Mpa
    Insulation pipe feeding tray specifications

    Tray diameter 1200mm

    The thickness of raw material 500mm

    Aperture inner core 200mm
